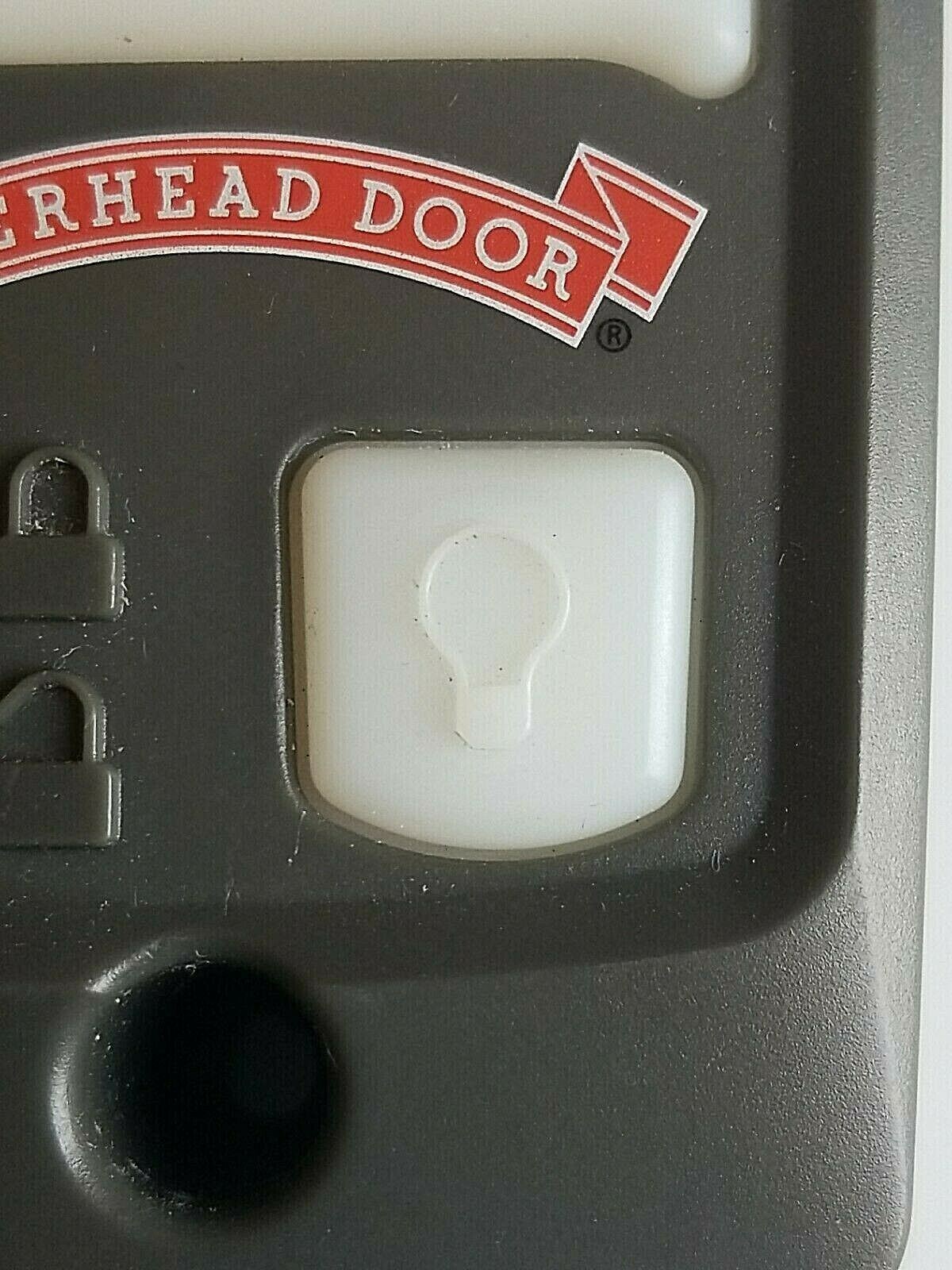

Overhead Door 39166R Garage Wall Console 3 Function Series II White Button

Overhead Door 39166R Garage Wall Console 3 Function Series II White Button

$26.50 USD
$26.50 USD
Sale Sold out
View full details

PRODUCT DESCRIPTION

Overhead Door 39166R Garage Wall Console 3 Function Series II White Button

Compatible with Genie GBWCSL2

- Back light: An indicator back light will display red when the wall console is properly wired and the Sure-Lock feature is set to OFF. When the Sure-Lock feature is ON, the indicator back light will be off.

- Open/Close Button: This button opens or closes the garage door. When the Sure-Lock feature is ON the Open/Close button will CLOSE the garage door only.

Note: Constant button pressure in the CLOSE mode will override the photocells in the power head and close the garage door.

Independent Light Console Button: This button is used to turn the power head lights ON. Power head lighting will remain ON until this button is pressed again or a door action has been completed.

Note: If the opener has a motion detector sensor, the sensor will keep the power head lights ON as long as motion is detected.

Sure-Lock Button: When the Sure-Lock feature is ON and the garage door is in the fully closed position, the power head cannot be activated by the wall console or a remote control.
Note: If the Sure-Lock feature is activated while the garage door is not fully closed, the door can still be operated until the door is fully closed.


The new wall console can be used in any Overhead Door Odyssey or Destiny series garage door opener manufactured after 9/24/12 and can be ordered using part #38067R.

The new wall console can also be used with any series II Overhead Door garage door openers such as the Legacy 696 or 496 models, Python II and even the Legacy 800.


Part Number(s): 38067, 38067R, OCWC2-BX, 39166R, OCWCSL2-BX, 761825018976
PCB 38739A Rev 02




NOTE: The part you receive WILL NOT be the exact one pictured, however it will be the same part number OR AN INTERCHANGE listed above, in similar condition. Items are used and may have paint, nicks, scratches, missing stickers, fading etc, but they are GUARANTEED to work or your MONEY BACK!
